Product Model : T8-600
Model No : ATX-300W
AC Input Voltage Current Frequency
220V(110V) 5A 50MHz(60 MHz)
DC Output +3.3V +5V +12V +12V -12V +5VSB P/G
14A 15A 18A 18A 0.5A 2A OK
Rated Power
Output		 103W 216W 6W 10W
300W
Details

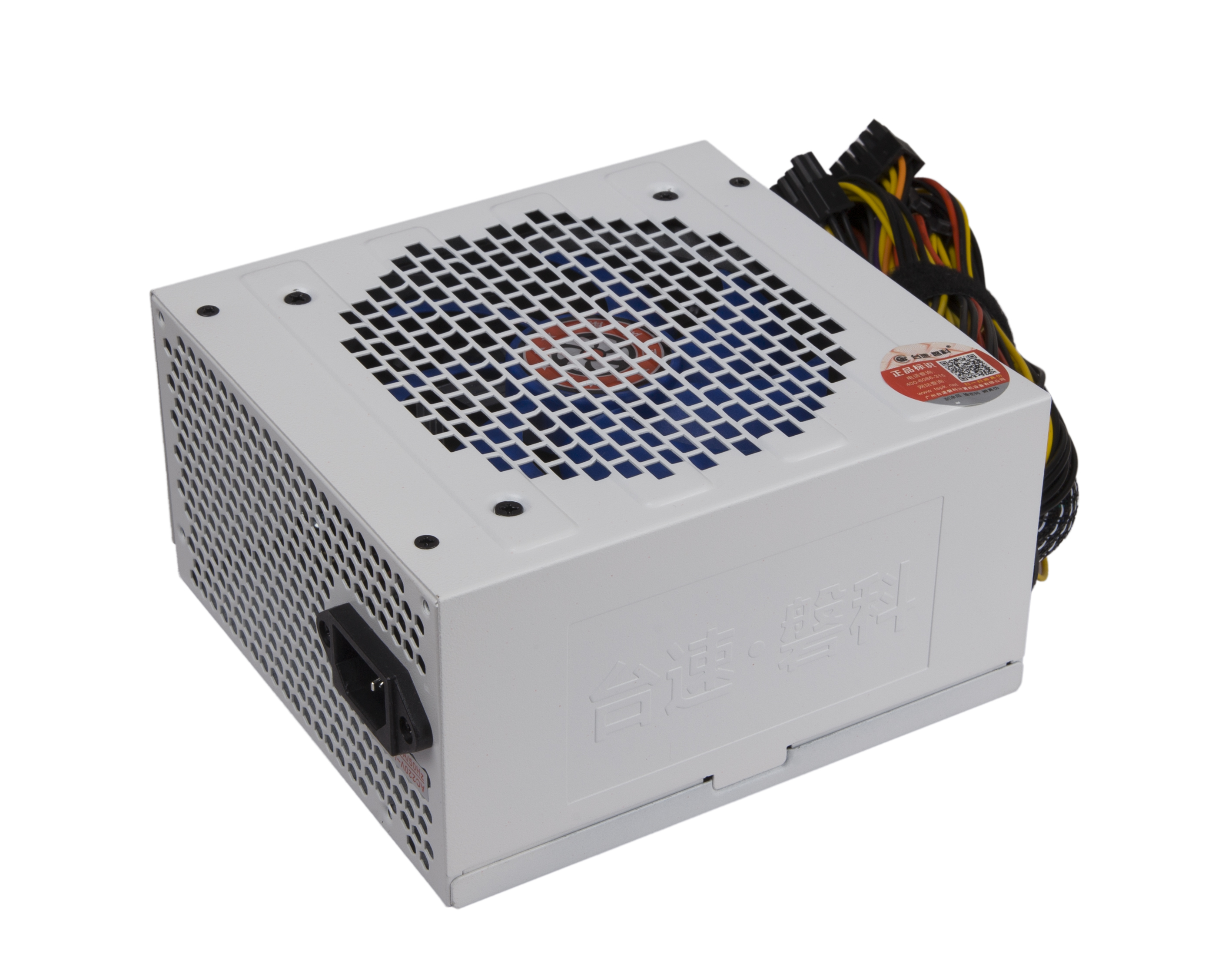

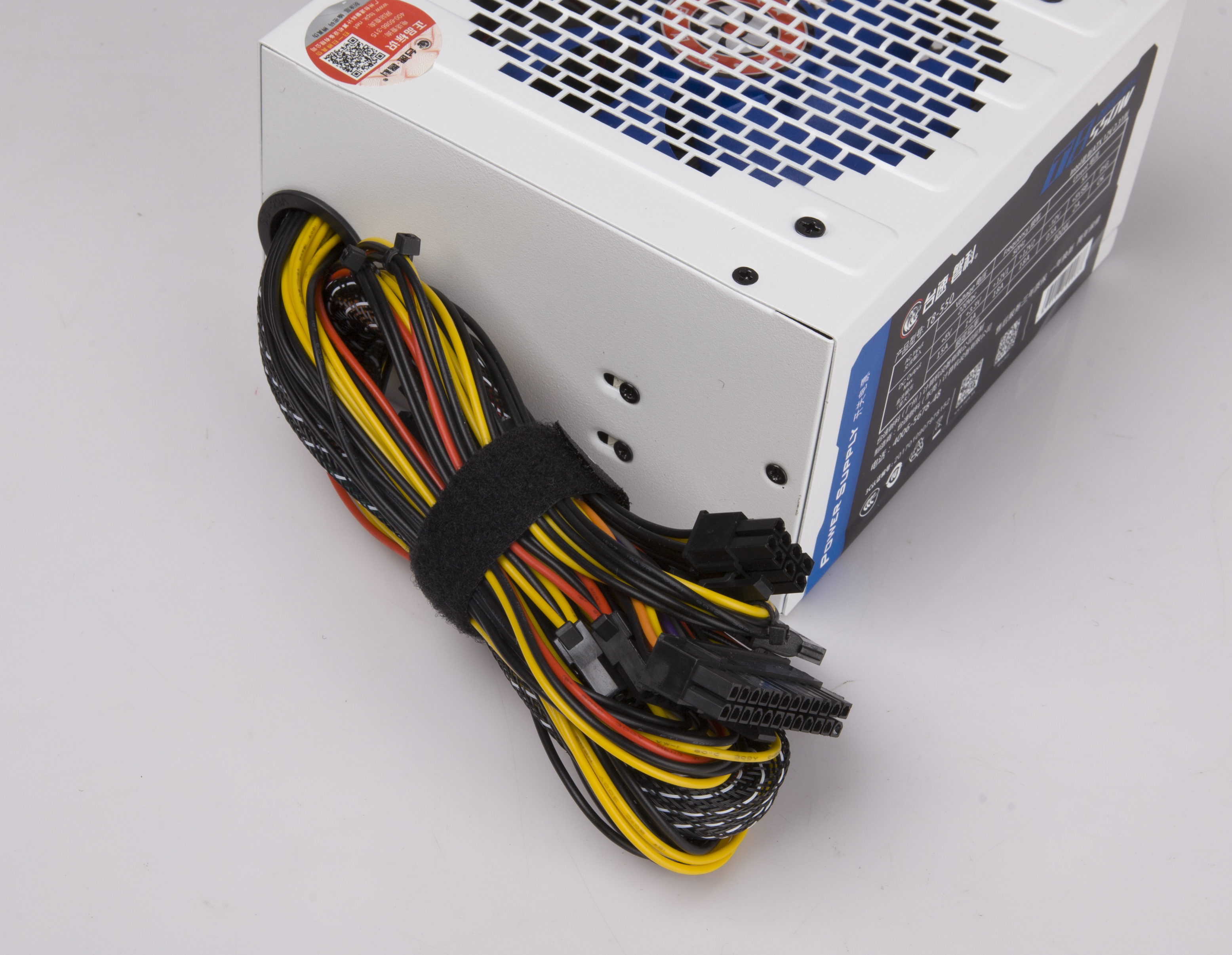

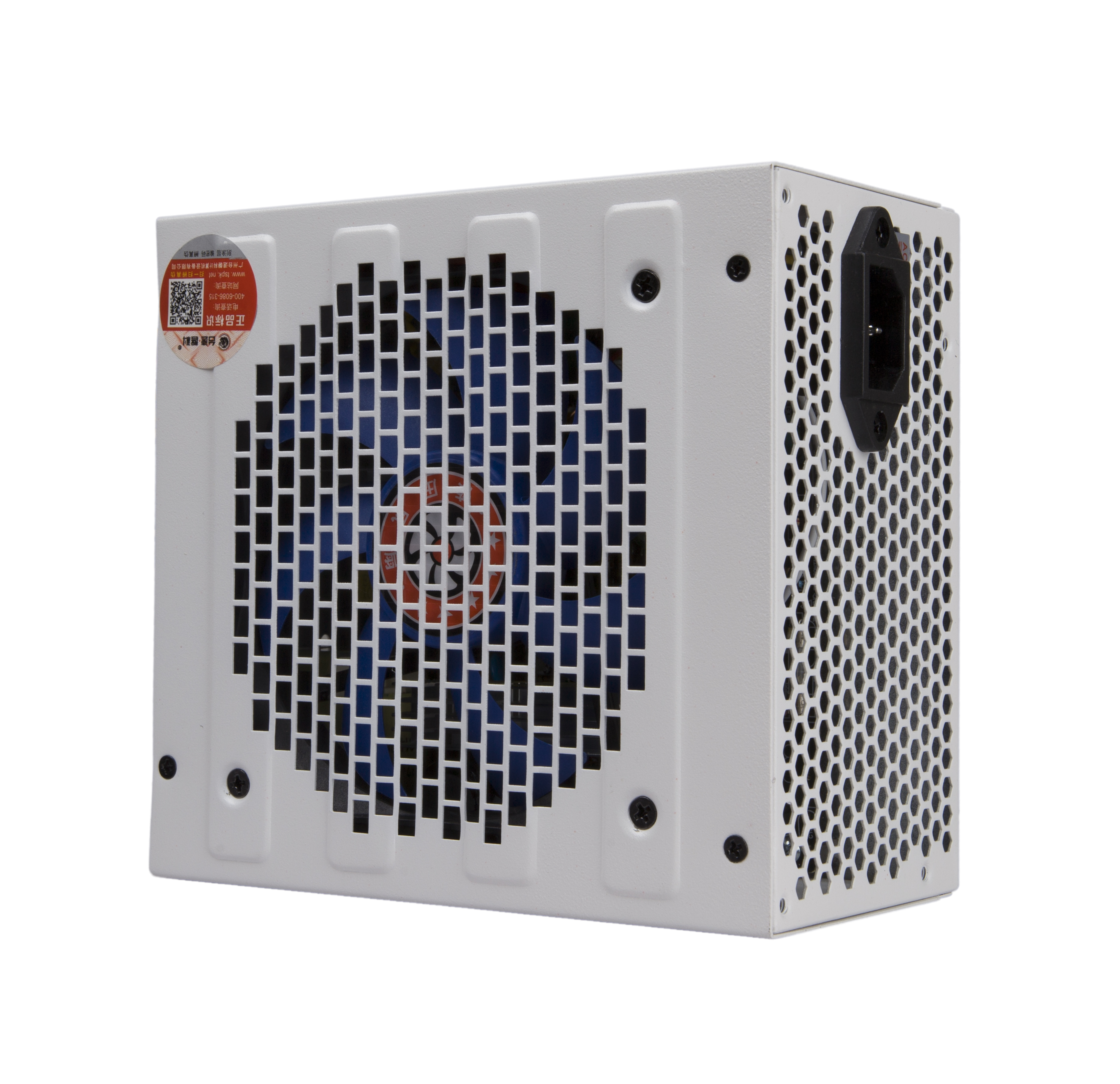

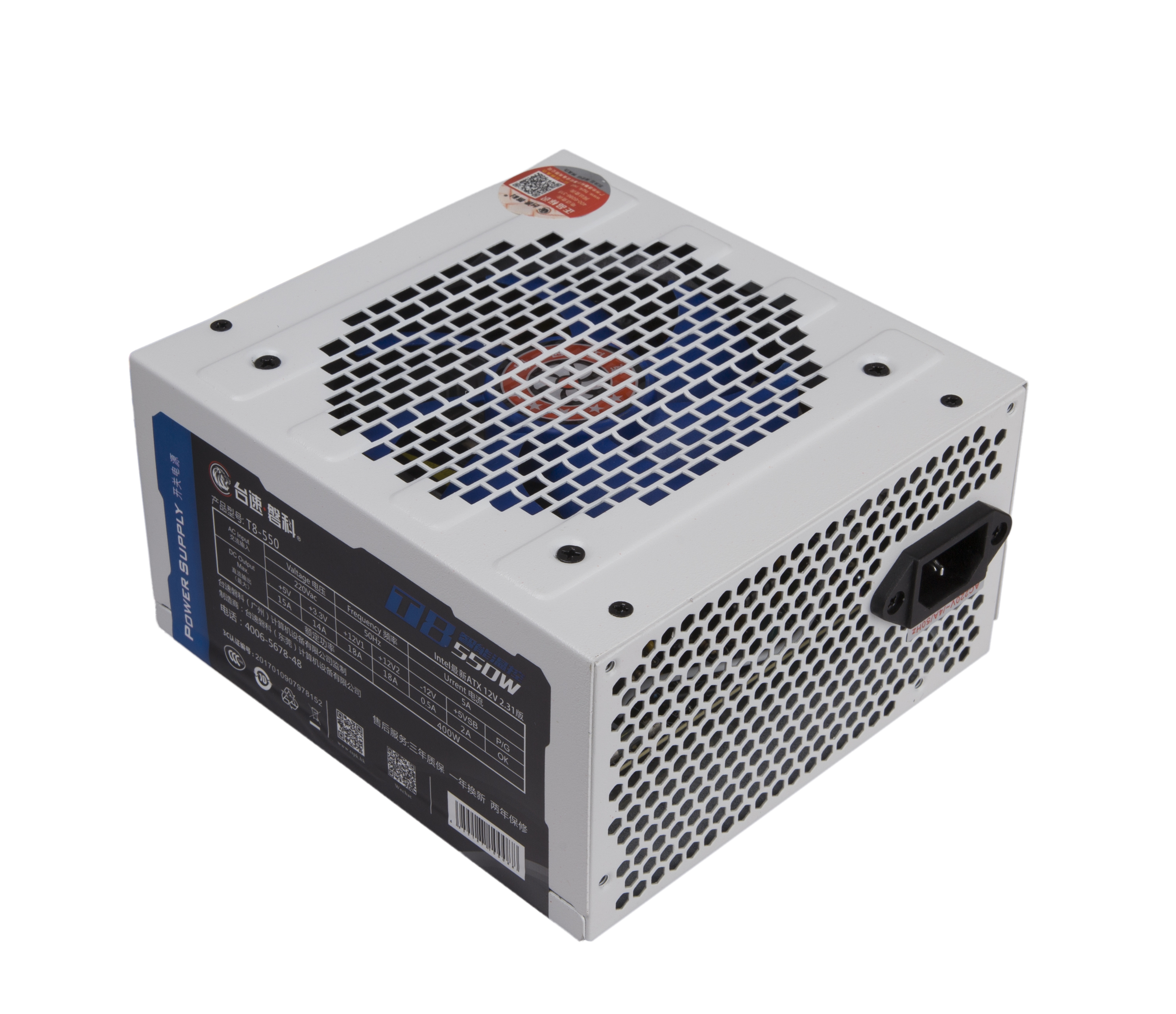

Product Name: Atx Power Supply
Product model T8-600
Model No: ATX-300W
Rate Power 300W
Housing Material black
M/T(20+4P)Exposed 510mm
CPU(4P\8P)Exposed 650mm 8(4+4)P×1
PCI-E(6+2P)Exposed 550mm 8(6+2)P×1
SATA (Exposed ) (680mm)×3
Molex 4pin (Exposed ) (550mm)×2
12V Rail Dual
Efficiency 78%
PFC Passive PFC
Fan@Fan Guard 120mm fan
SIZE 160*150*85mm
AC Input Range 220V(110V)
Standby Power ≤1W
Technical Specification Intel ATX 12V Ver2.3 Power supply
I/O  Switch None
Package 10PCS/box
LOGO OEM/TAISU
Logo effect Silk print, laser engraving print
color print or as customized
Warranty 1 year
Certification CE,ROHS,FCC,TUV,CB
MTBF 50000hrs
Active PFC Universal YES
Temperature Control yes
