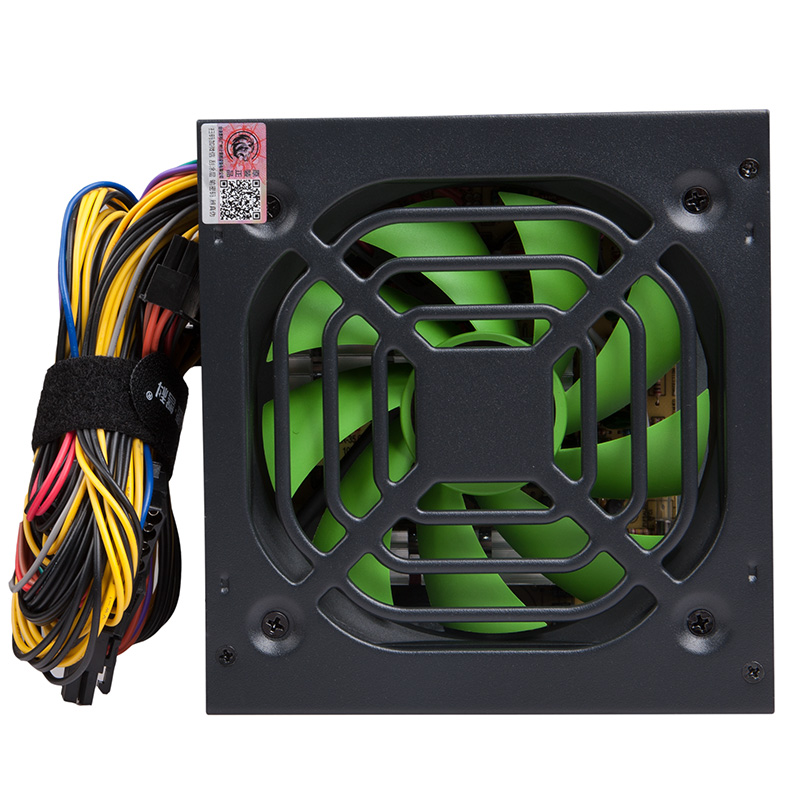

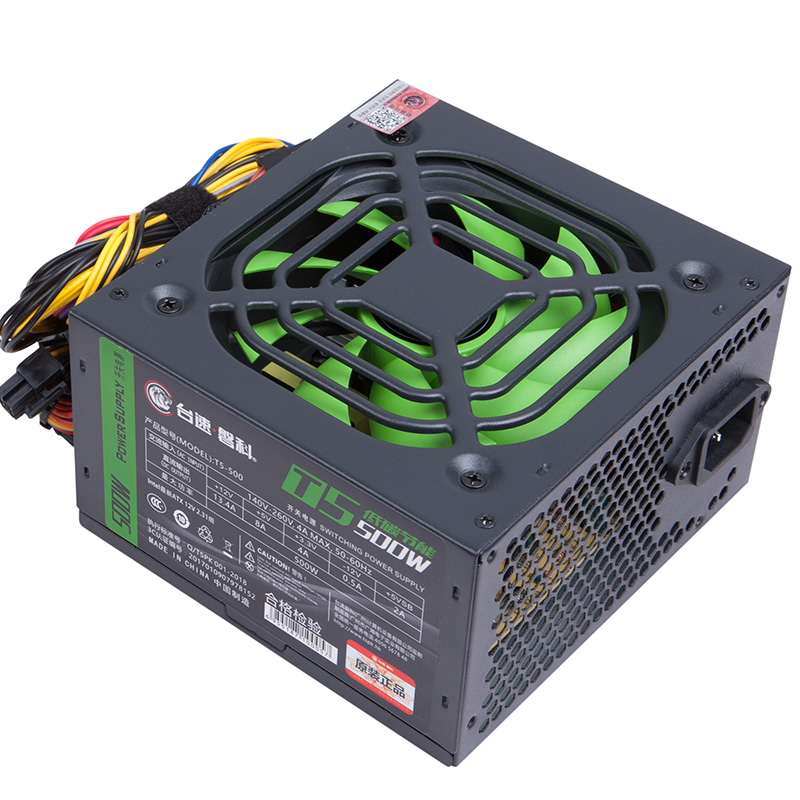

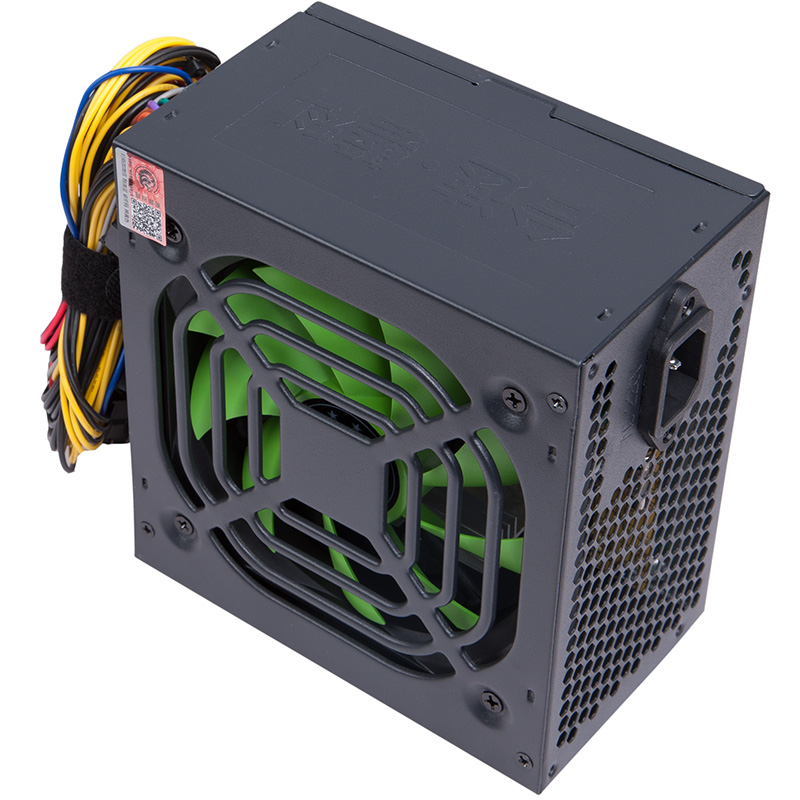

ATX Switching Power Supply
ATX Power Supply
T5-500
T5-500
T5-500
T5-500
T5-500
T5-500
T5-500

T5-500

PRODUCT MODEL T5-500 Model No ATX-230W
AC INPUT VOLTAGE CURRENT FREQUENCY
220V(110V) 5A 50MHz(60 MHz)
DC OUTPUT +3.3V +5V +12V +12V -12V   +5VSB   P/G
13A 14A 14A 14A 0.5A 2A OK
RATED POWER
OUTPUT		 80W 168W 6W 10W
230W
Details
Product Name: ATX Power Supply
Product model T5-500
Model No: ATX-230W
Rate Power 230W
Fan@Fan Guard 120mm
Housing Material black
M/T(20+4P)Exposed 490mm
CPU(4P\8P)Exposed 540mm 8(4+4)P×1
PCI-E(6+2P)Exposed 440mm 6P×1
SATA (Exposed ) (480mm)×2
Molex 4pin (Exposed ) (380mm)×2
12V Rail Dual
Efficiency 75%
PFC \
SIZE 150*140*85mm
AC Input Range 220V(110V)
Standby Power ≤1W
Technical Specification Intel ATX 12V Ver2.3 Power supply
I/O  Switch None

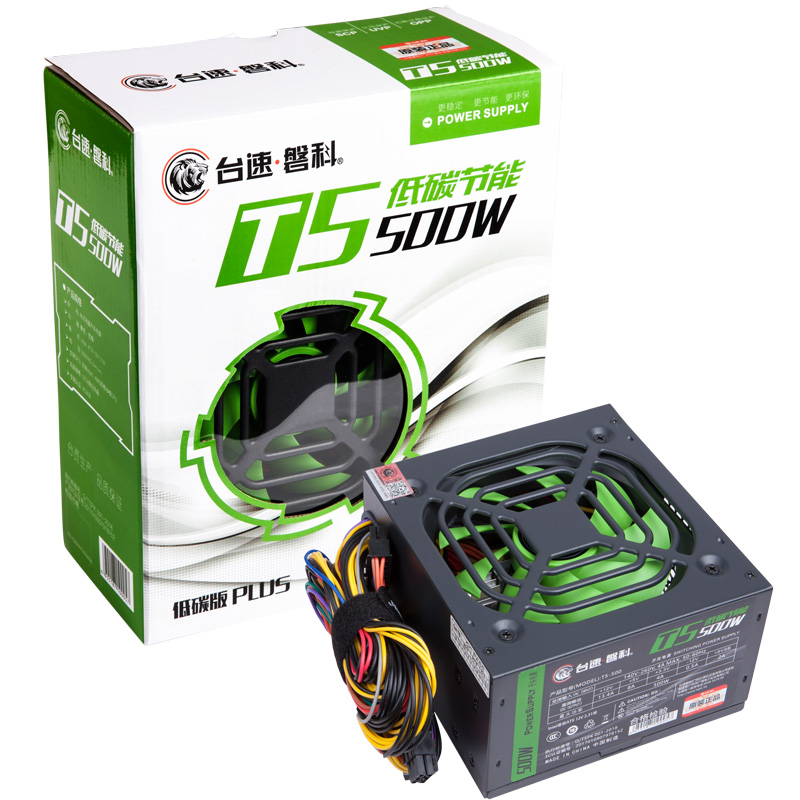

Package 10PCS/box
LOGO OEM/TAISU
Logo effect Silk print, laser engraving print,
color print or as customized
Warranty 1 year
Certification CE,ROHS,FCC,TUV,CB
MTBF 50000hrs
Temperature Control yes
